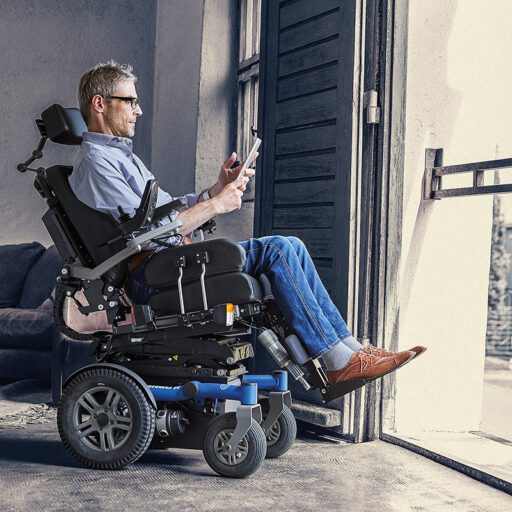

Dietz Rehab Sango Advanced Powered Electric Wheelchair

Sango Advanced Powered Electric Wheelchair

The SANGO advanced with SEGO comfort was the first powered wheelchair developed by DIETZ Power and forms the basis for the whole SANGO range. The customers played a significant role in the development of the SANGO. All of their input, along with the many years of experience the DIETZ Power developers have, is reflected in the resulting design of the SANGO.

Product features

  • Possible with SEGO comfort or with SEGO junior
  • Available as FWD, RWD or MWD
  • Minimum seat height of 39 cm, even with powered adjustments
  • Extremely maintenance friendly; replacing parts is simple, as they are all easily accessible
  • Superbly easy access to electronics
  • High level of comfort, ease of use, reliability and manoeuvrability
  • Constructed in a straightforward and robust way, and its carefully designed structure makes it exceptionally stable
  • Maximum speed: 6, 10 & 12.5km/h
  • Battery options: 60ah, 78ah, 100ah
  • Riser seat tilt, recline back, electric centre footboard
  • Maximum user weight: 160kg
  • Available in a range of seating & control options
SKU: 1q21qw2 Category: Tag:
MPN: 6467

Description

      [kapee_heading title_tag=”h5″ title_align=”left” title=”The ergonomic assistant for perfect everyday comfort”]

      Sango Advanced Powered Electric Wheelchair

      • Can be used with SEGO comfort or with SEGO junior
      • Available as FWD, RWD or MWD
      • Minimum seat height of 39 cm, even with powered adjustments
      • Extremely maintenance friendly; replacing parts is simple, as they are all easily accessible
      • Superbly easy access to electronics
      • High level of comfort, ease of use, reliability and manoeuvrability
      • Constructed in a straightforward and robust way, and its carefully designed structure makes it exceptionally stable

      Crash tested according to ISO 7176-19, approved for passenger transport in a vehicle.

      Sango Advanced Powered Electric Wheelchair can be used in a multitude of way and set up so.

      Depending on what the wheelchair will be used for, the environment involved and any individual requirements, a rear-wheel drive (RWD), mid-wheel drive (MWD) or front-wheel drive (FWD) base unit can be selected. The base units are optimally sprung for comfort. If required, the castor forks in the RWD and FWD models can also be fitted with additional suspension.

      As the SANGO advanced can be made with a seating height of just 39 cm (even with a powered adjustment), it is an ideal wheelchair for using in a car. When indoors, the wheelchair easily fits under worktops and tables.

      There are numerous of options for the Sango Advanced Powered Electric Wheelchair including a selection of colours, wheel types, powered adjustments, seat and backrest cushions, legrests, armrests, headrests, trays and accessories. Depending on the frame or seat type certain options are possible. An overview of the possiblities can be found below.

      Drive base

      RWD FWD MWD
      SANGO advanced x x x
      SANGO slimline x
      SANGO xxl x



      Maximum speed

      6 km/h 10 km/h 12,5 km/h
      SANGO advanced x x x
      SANGO slimline x x x*
      SANGO xxl x

      *only RWD

      Seating system

      SEGO comfort SEGO xxl SEGO junior
      SANGO advanced x x
      SANGO slimline x x
      SANGO xxl x

      Electronics

      VR2 R-net
      SANGO advanced x x
      SANGO slimline x x
      SANGO xxl x

      Powered adjustments

      Backrest recline

      Backrest 30° Backrest 45°
      SEGO comfort x x
      SEGO junior x x
      SEGO xxl x x

      Seat tilt

      Tilt 25° Tilt 45° Tilt 52°
      SEGO comfort x x
      SEGO junior x x
      SEGO xxl x

      Seat lift

      Lift 20 cm Lift 30 cm
      SEGO comfort x
      SEGO junior x
      SEGO xxl x

      Other powered adjustments

      Legrests Catapult 25° Bio mechanical backrest
      SEGO comfort x x x
      SEGO junior x
      SEGO xxl x x
      [kapee_heading title=”Sango Advanced Powered Electric Wheelchair Specification”]

      Drive types



      Front wheel drive
      Centre mount legrest
      Total length A 93 cm
      Total length B 108 cm

      Wheelbase C 57 cm



      Midwheel drive
      Centre mount legrest
      Total length 93 cm
      Total length B 118 cm

      Wheelbase C 73 cm





      Rear wheel drive
      Swing away legrest
      Total length A 83 cm
      Total length B 98 cm

      Wheelbase C 45 cm





      SANGO advanced



      Maximum user weight
      160 kg

      Maximum speed
      6, 10 and 12,5 km/h



      Wheel sizes
      Drive wheels
      A 12 and 14″

      Castor wheels
      B RWD/FWD 8″ and 9″
      MWD 7″ and 8″



      Total width
      Drive wheels 14″ outside
      Min. 61,5 cm
      Max. 70 cm



      Seat height
      Drive wheels 14″ without seat cushion
      39, 41 – 46 and 48 cm



      Total height
      Drive wheels 14″ without headrest
      min. 101 cm
      max. depending on configuration





      SEGO comfort



      Seat / back width
      42, 44, 46, 48, 50, 52 and 54 cm



      Seat depth
      Adjustable from 42 to 56 cm



      Backrest height
      Without headrest and seat cushion
      50 and 57 cm

      [kapee_heading title=”Specs SANGO advanced SEGO junior”]

      Drive types



      Front wheel drive
      Centre mount legrest
      Total length A 93 cm
      Total length B 108 cm

      Wheelbase C 57 cm



      Midwheel drive
      Centre mount legrest
      Total length 93 cm
      Total length B 118 cm

      Wheelbase C 73 cm

      Rear wheel drive
      Swing away legrest
      Total length A 83 cm
      Total length B 98 cm

      Wheelbase C 45 cm



      SANGO advanced



      Maximum user weight
      75 kg



      Maximum speed
      6, 10 and 12,5 km/h





      Wheel sizes
      Drive wheels
      A 12 and 14″

      Castor wheels
      B RWD/FWD 8″ and 9″
      MWD 7″ and 8″



      Total width
      Drive wheels 14″ outside
      Min. 61,5 cm
      Max. 70 cm





      Seat height
      Drive wheels 14″ without seat cushion
      39, 41 – 46 and 48 cm



      Total height
      Drive wheels 14″ without headrest
      min. 91 cm
      max. depending on configuration





      SEGO junior
