Catalyst 5VX Folding Wheelchair from Ki Mobility

£1,500.00

From £1500. Enquire with us for an assessment.



We pride ourselves in providing the highest quality manual wheelchairs to the Complex Rehab Industry. It is important to continuously improve upon our chairs and options selection to ensure we are maintaining our Better by Design standard. A few of our most recent enhancements to the Catalyst line include: our new cross brace design for increased rigidity and durability, black fasteners for aesthetics, cambering one-arm drive system, reclining backrest option and Performance Caster Housing to give you up to 4″ of seat dump.

SKU: 6415 Categories: , Tags: , , , , ,
MPN: 6415

Description

Features

[kapee_heading title_tag=”h5″ title_align=”left” title=”The Catalyst Family”]

From the logo to the frame, Catalyst 5VX has been redesigned with a modern, minimalist approach. Enhanced designs let you optimize your ride.

Ki Mobility Logo
[kapee_heading title_tag=”h5″ title_align=”left” title=”THE RIDE YOU’VE COME TO EXPECT FROM CATALYST.”]

Usability

[kapee_heading title_tag=”h5″ title_align=”left” title=”Better Adjustment”]
Catalyst-5vx-axle-plate-scaled
Catalyst-5vx-axle-plate-scaled

Center of Gravity adjustment and ride performance go hand in hand. The redesigned axle plate and rear frame give you more adjustment over a greater range. Find your fit, ease your propulsion and optimize the ride you’ve come to expect with Catalyst.



[kapee_heading title_tag=”h5″ title_align=”left” title=”Adjustable Camber”]
Catalyst-5vx-camber-spacers-no-arrows-scaled
Catalyst-5vx-camber-spacers-no-arrows-scaled

Adjustable Camber gives you up to 4° of camber in 1” increments. A simple adjustment and convenient option you can optimize now or later without any additional parts.

[kapee_heading title_tag=”h5″ title_align=”left” title=”Transit Wheels”]
Wheels
Wheels

Integrated into the rear frame, Transit Wheels allow you to remove your rear wheels for easier access through narrow spaces.

[kapee_heading title_tag=”h5″ title_align=”left” title=”Swing-In Anti-Tips”]
Catalyst-5vx-user-activated-anti-tips-scaled
Catalyst-5vx-user-activated-anti-tips-scaled

The new swing in anti-tips make it easy for the user to operate. By simply pushing down on the ergonomically designed handle you can swing them in, out of the way.

[kapee_heading title_tag=”h5″ title_align=”left” title=”Fender Side Guards”]
Side-bar
Side-bar

Choose between carbon fiber and foam padded aluminum side guards with fender to protect your clothing from the road while adding a sleek look to your chair.

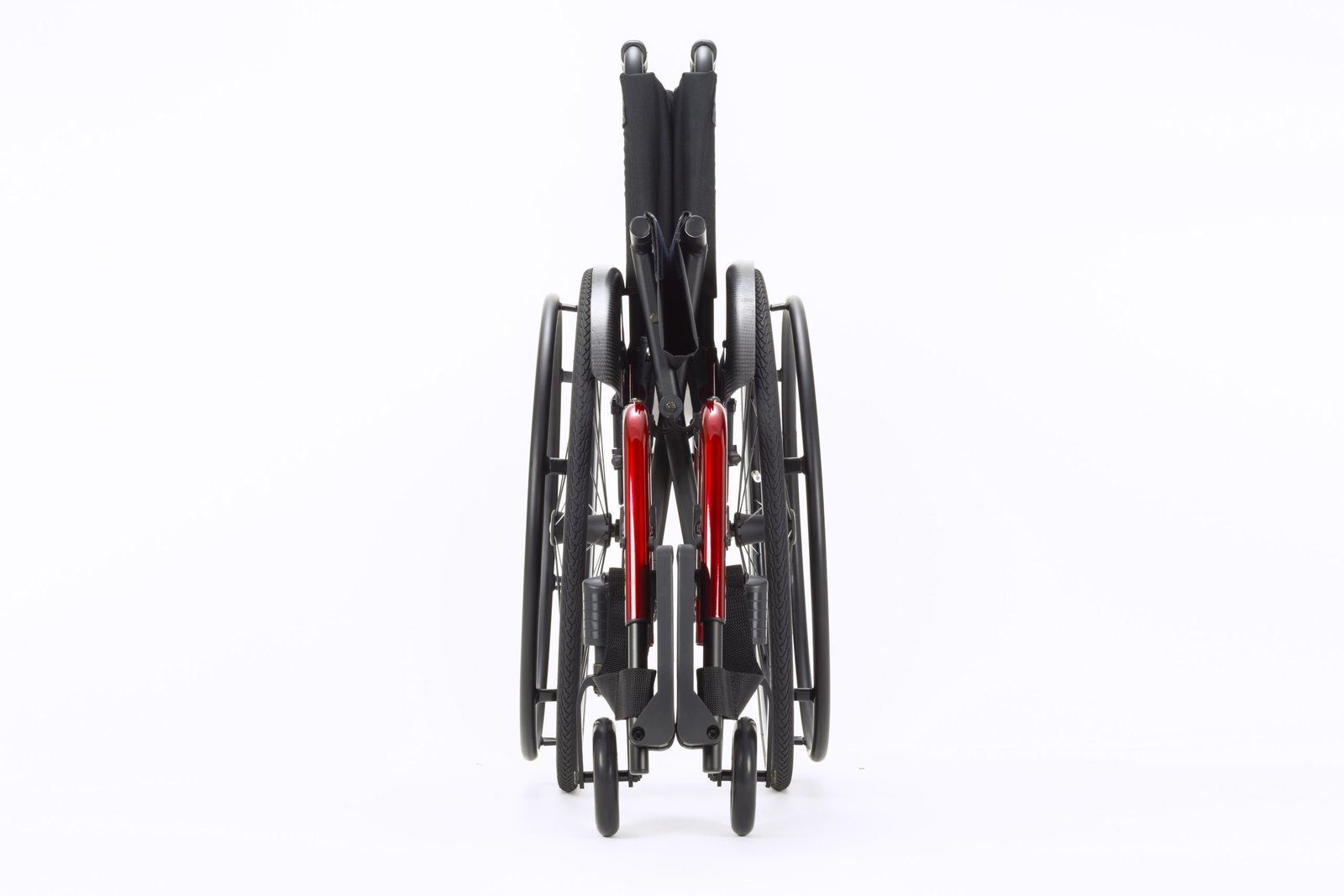

[kapee_heading title_tag=”h5″ title_align=”left” title=”Easily foldable for tranist.”]
Catalyst-5vx-front-folded-candy-red-scaled
Catalyst-5vx-front-folded-candy-red-scaled

Options

Frame Options

Backrest Options

Hanger Options

Upholstery

Footplates

Casters

Caster Housing

Forks

Wheel Locks

Wheels

Tyres

Handrims

Axles and Axle Plates

Armrests

Anti-Tippers

Pelvic Positioning Belts

Accessories

Color Anodizing

[kapee_heading title_tag=”h3″ title_align=”left” title=”BETTER STYLE” sub_title=”Pediatric wheelchair” tagline=”A unique paediatric wheelchair” title_color=”#3cbac8″ tagline_color=”#3cbac8″]
Catalyst-5vx-left-side-candy-red-scaled

Be bold. Be you. With thousands of combinations between frame color, anodizing package, options and accessories, your style begins with you.

Need help?

Call: 0121 630 3850

Email: hello@youniquehealthcare.co.uk

Book Assessment Here

Check us out on social media

Additional Information

Transport Weight *

13.9 lbs. 6.3 kg * 16”x16” Frame, 5”x1” Poly Casters, Height Adjustable T-Arm Receivers. Footrest and Rear Wheels removed.
Standard Weight

24 lbs. 10.89 kg
Seat Width

14 – 22" 36 – 56 cm
Seat Depth

14 – 20" 36 – 51 cm
Front Seat Height

13.5 – 21" 34 – 53 cm
Rear Seat Height

11.5 – 20" 29 – 51 cm
Top Frame Tubing Size

1" 2.54 cm
Bottom Frame Tubing Size

1.125" 2.86 cm
Camber

1-4° (1° increments)
Weight Capacity

Weight Capacity 300 lbs. 136.08 kg Weight Capacity HD 350 lbs. 158.75 kg
Axle Positions Available

7
Center of Gravity Adjustment Increments

.5" 1.27cm
Center of Gravity Adjustment Range

2" 5.08cm
Frame Material

7000 Series Aluminium
HCPCS

K0005
